CAPE CONCENTRATE

Rizel Engineering was contracted to design, manufacture and supply Cape Concentrate with the following items for the manual harvesting of Tomatoes:

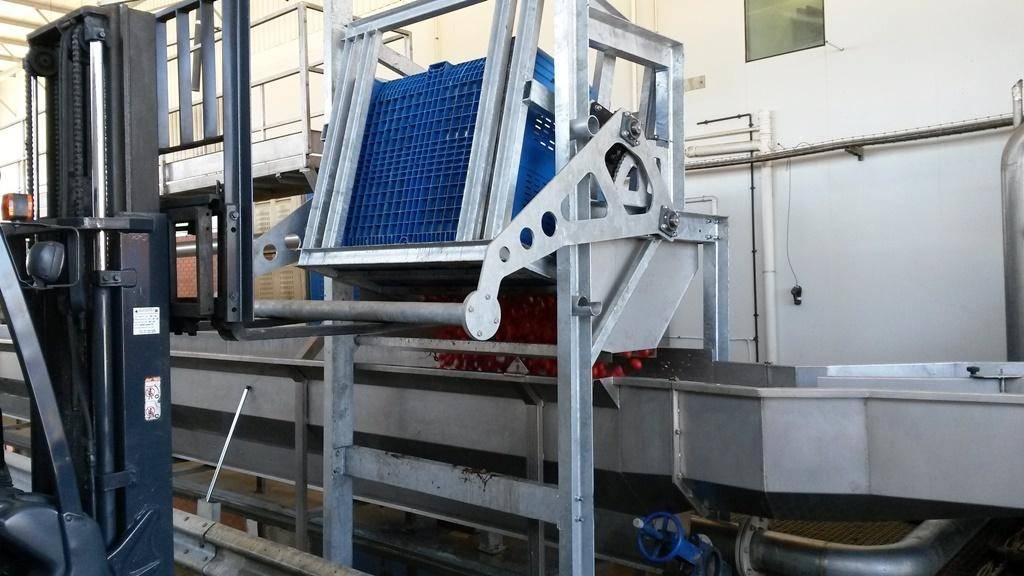

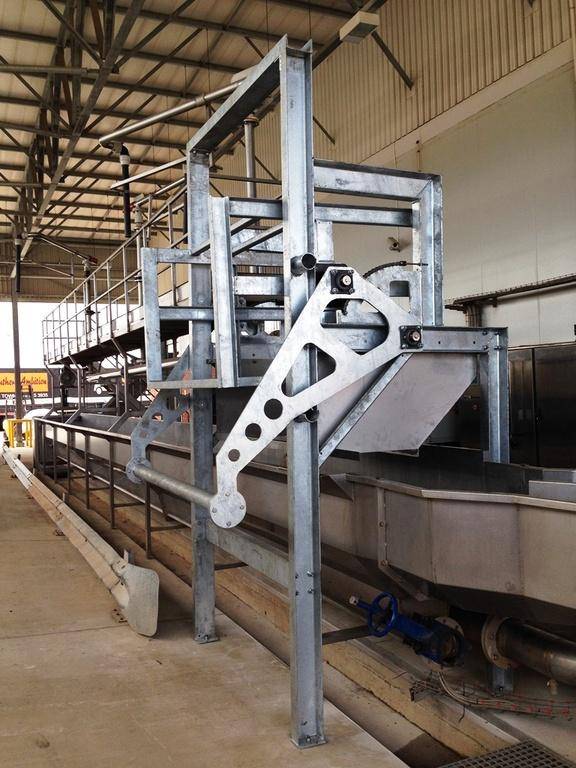

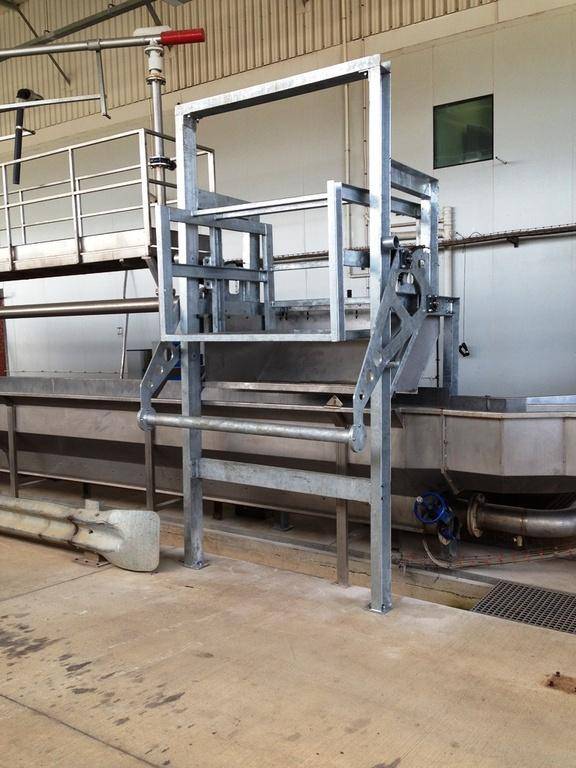

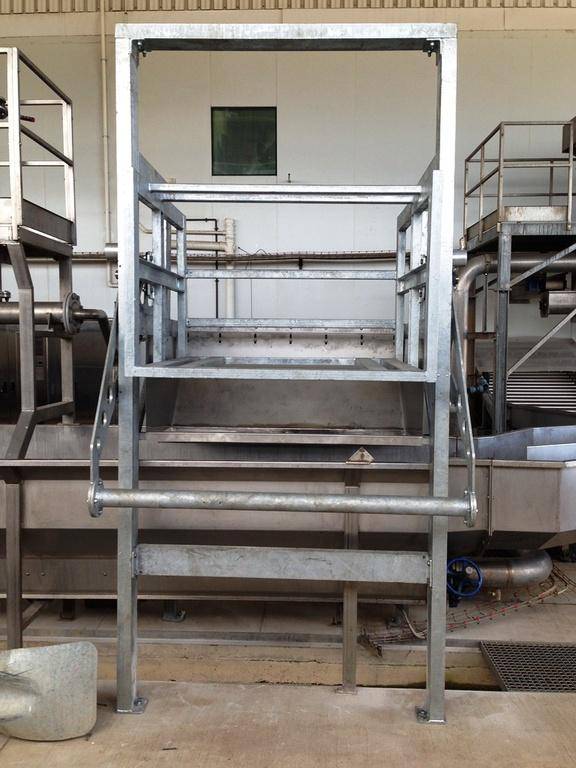

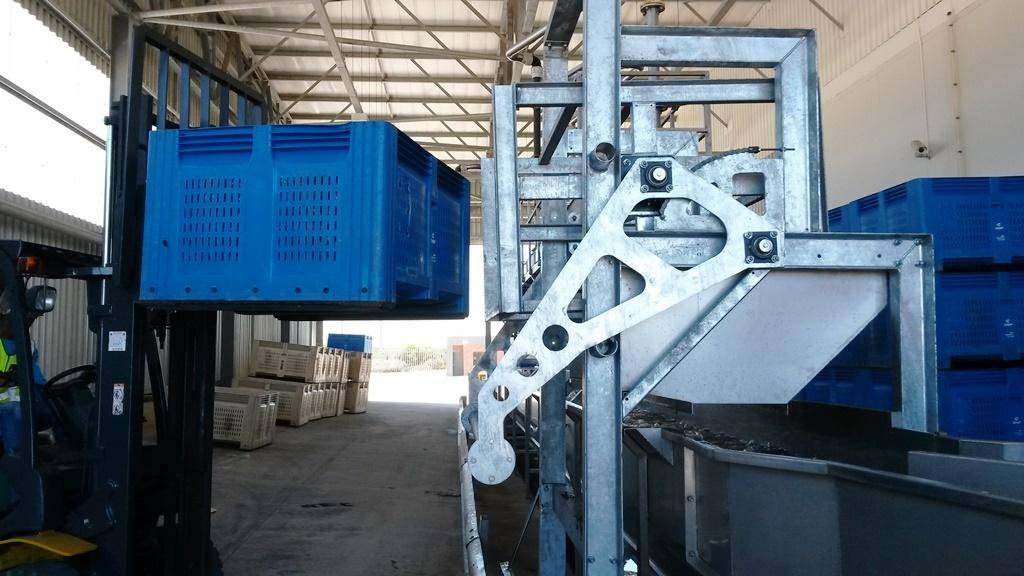

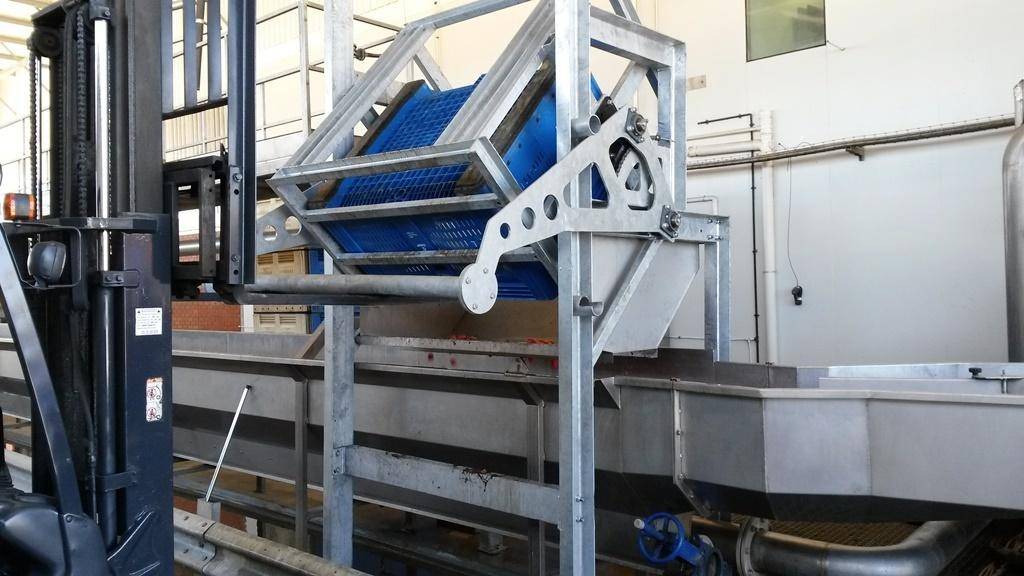

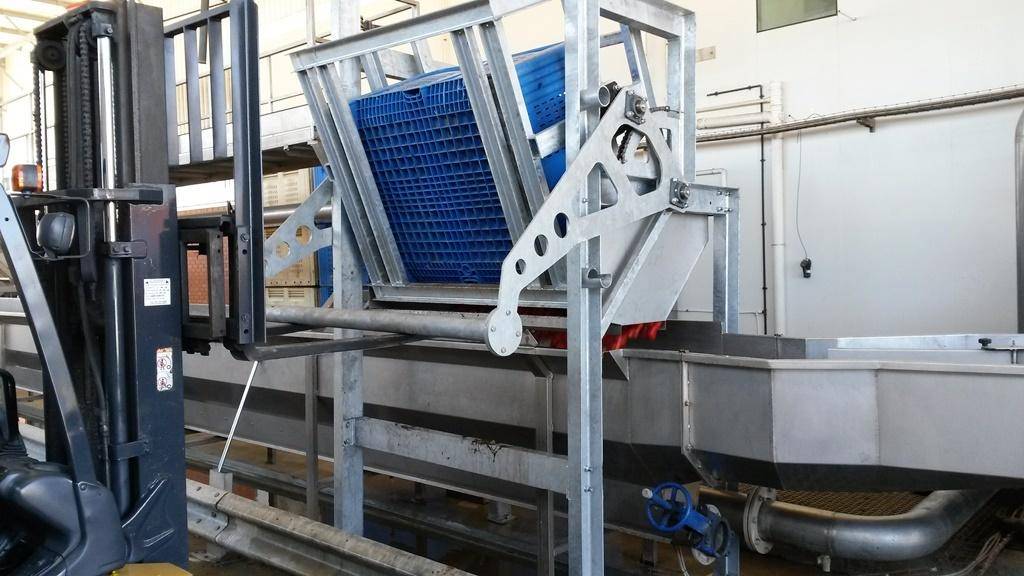

2 - 500kg Crate tipping systems

Which comprimises of a heavy duty support structure with a receiving bogey complete with swivels in bearings. The Bogey is rotated by means of a fork truck operated lever system

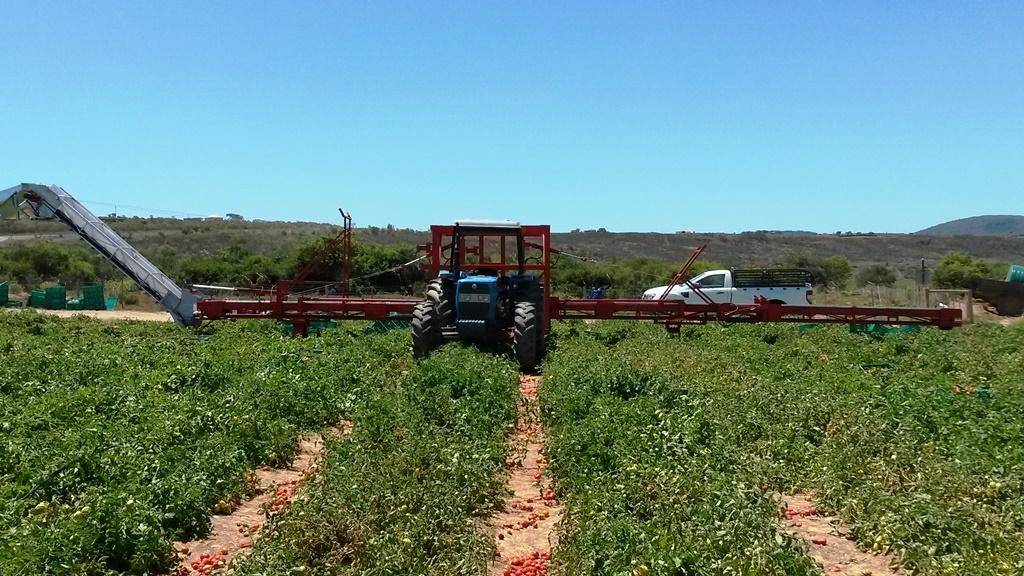

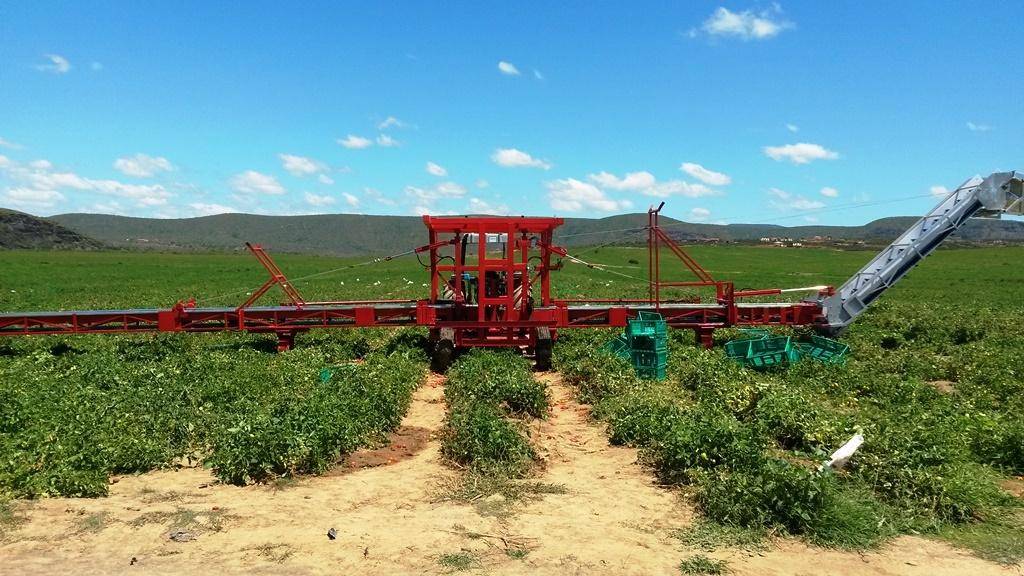

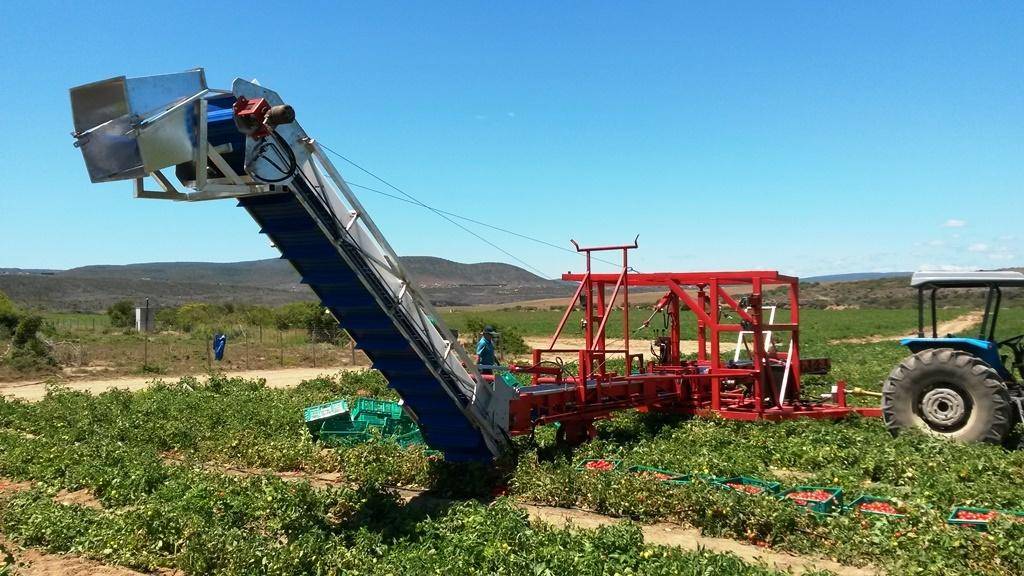

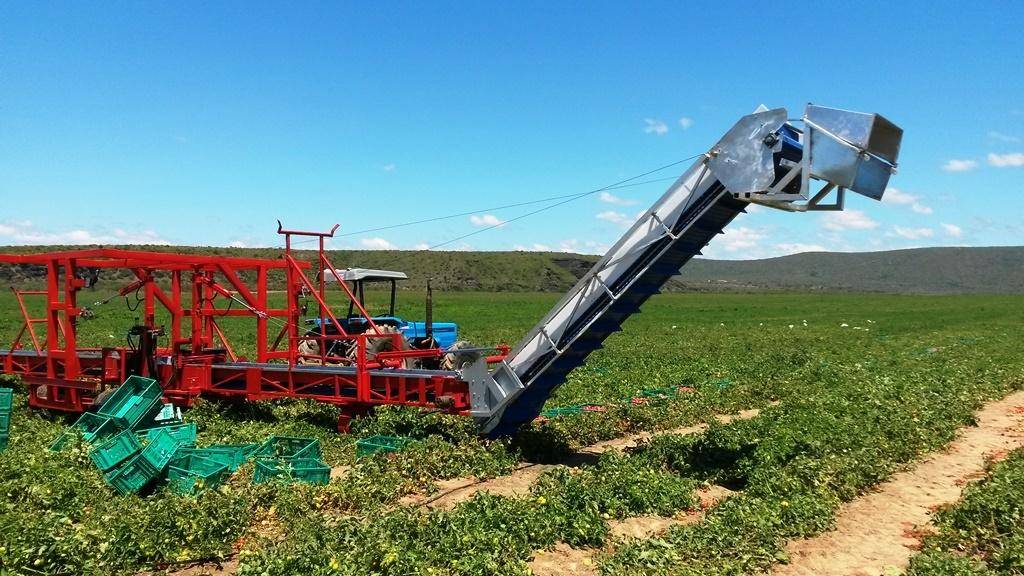

4 - Manual harvesting systems

Each harvesting system comprimised of the following;

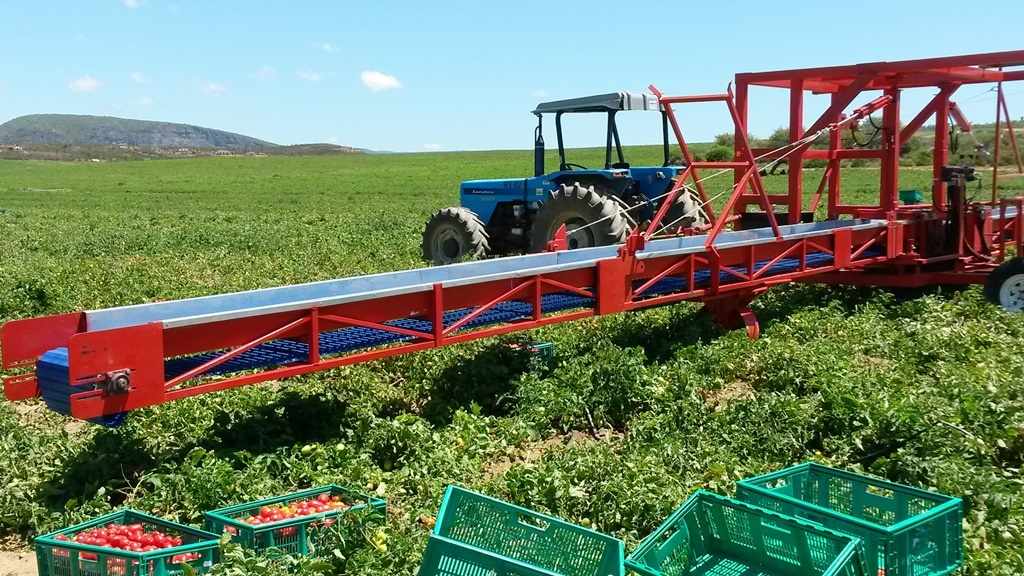

Tractor drawn mounting bogey which accomodates the conveyor mountings and the hydraulic operating system which is driven from the tractor PTO

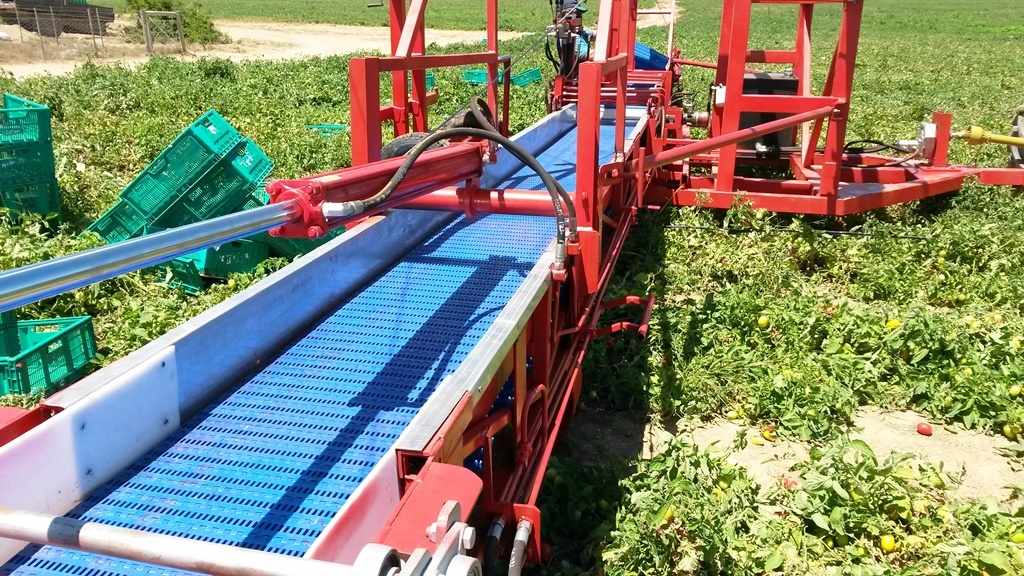

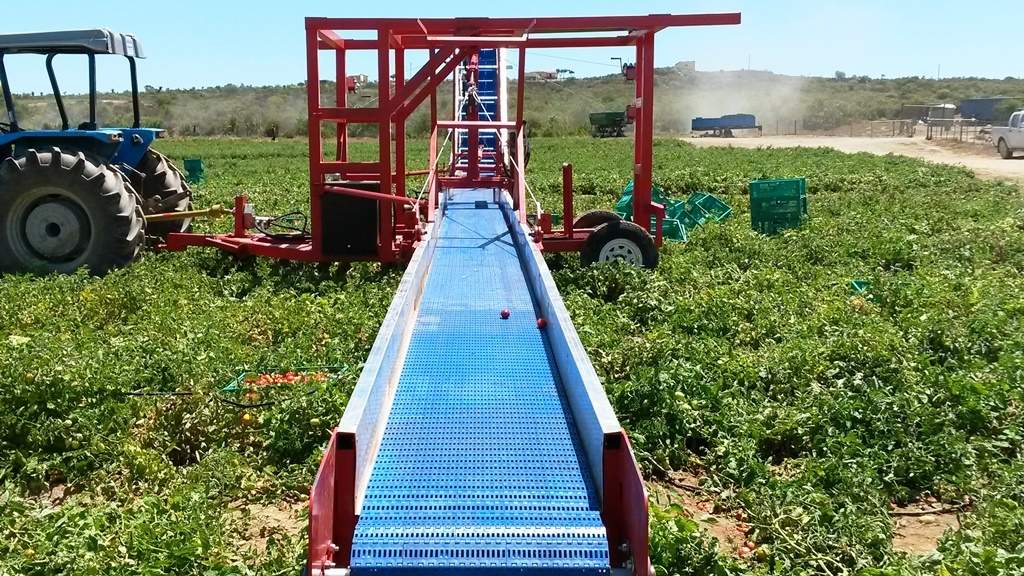

Infeed conveyor 1 (9500mm) which is has a suitably designed support frame with side guides with a 450mm wide modular belt. The Conveyor is raised via a hydraulic cylinder. The conveyor is driven via a hydraulic drive motor with a belt speed of 20m/min.



Infeed conveyor 2 (5900mm) which is has a suitably designed support frame with side guides with a 450mm wide modular belt. The Conveyor is raised via a hydraulic cylinder. The conveyor is driven via a hydraulic drive motor with a belt speed of 20m/min.

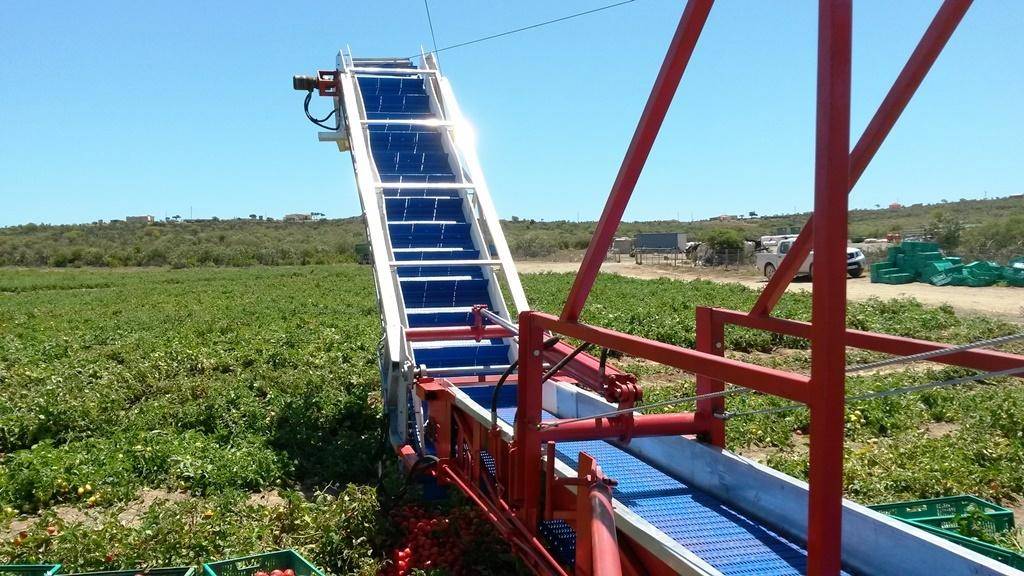

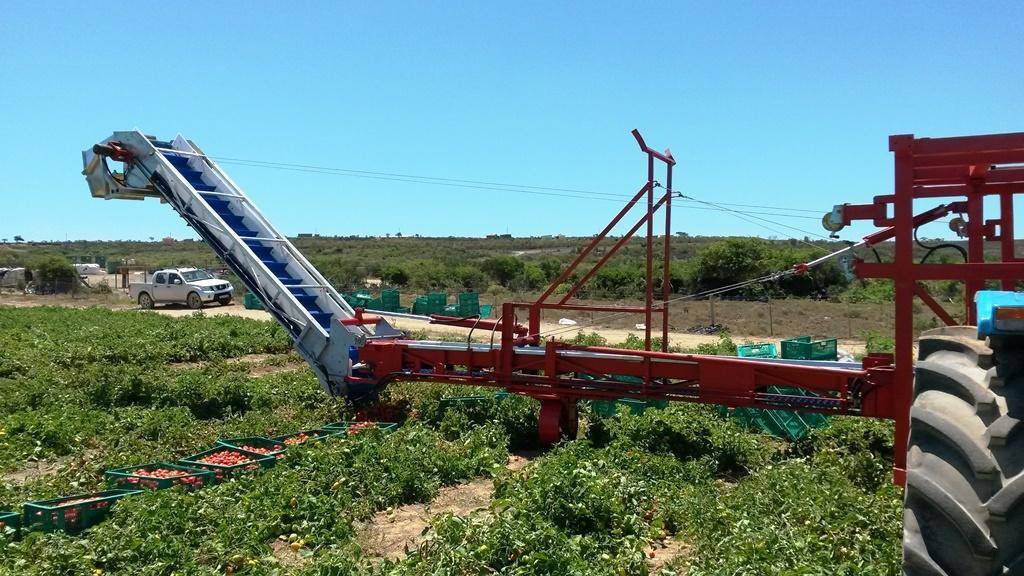

Elevating conveyor (4000mm) which has a suitably designed support frame manufactured from aluminium with a 600mm wide modular belt with 150mm high cleats fitted at 350mm pitches. The conveyor is stabilized via a cable system from the mounting bogey. The conveyor is driven via a hydraulic drive motor with a belt speed of 25m/min.

20150121132355
20150121132333
20150121132318
20150121132300
20150121132238
20150121132219
20150121132153
20150121132135
20150121132038
20150123121059
20150123121116
20150123121118
20150123121120
